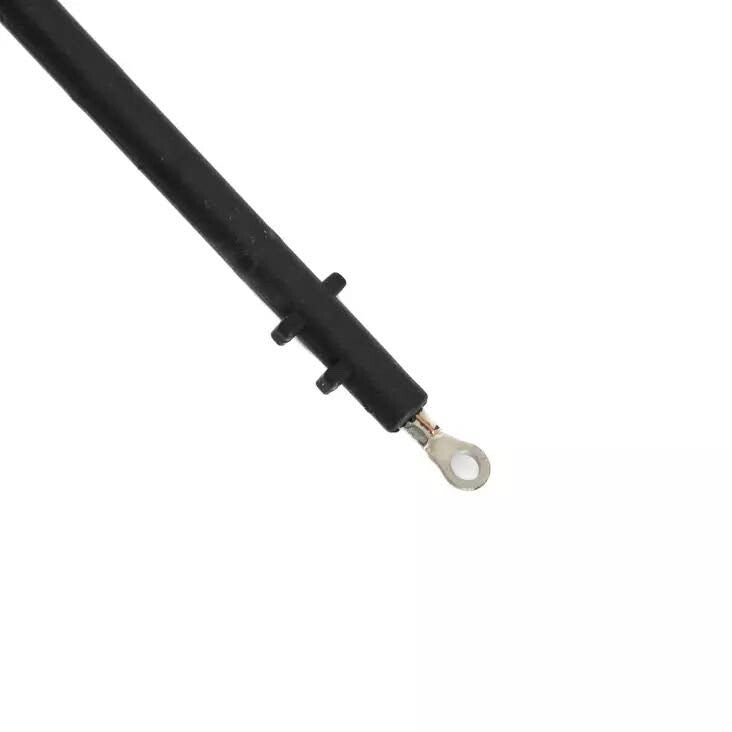

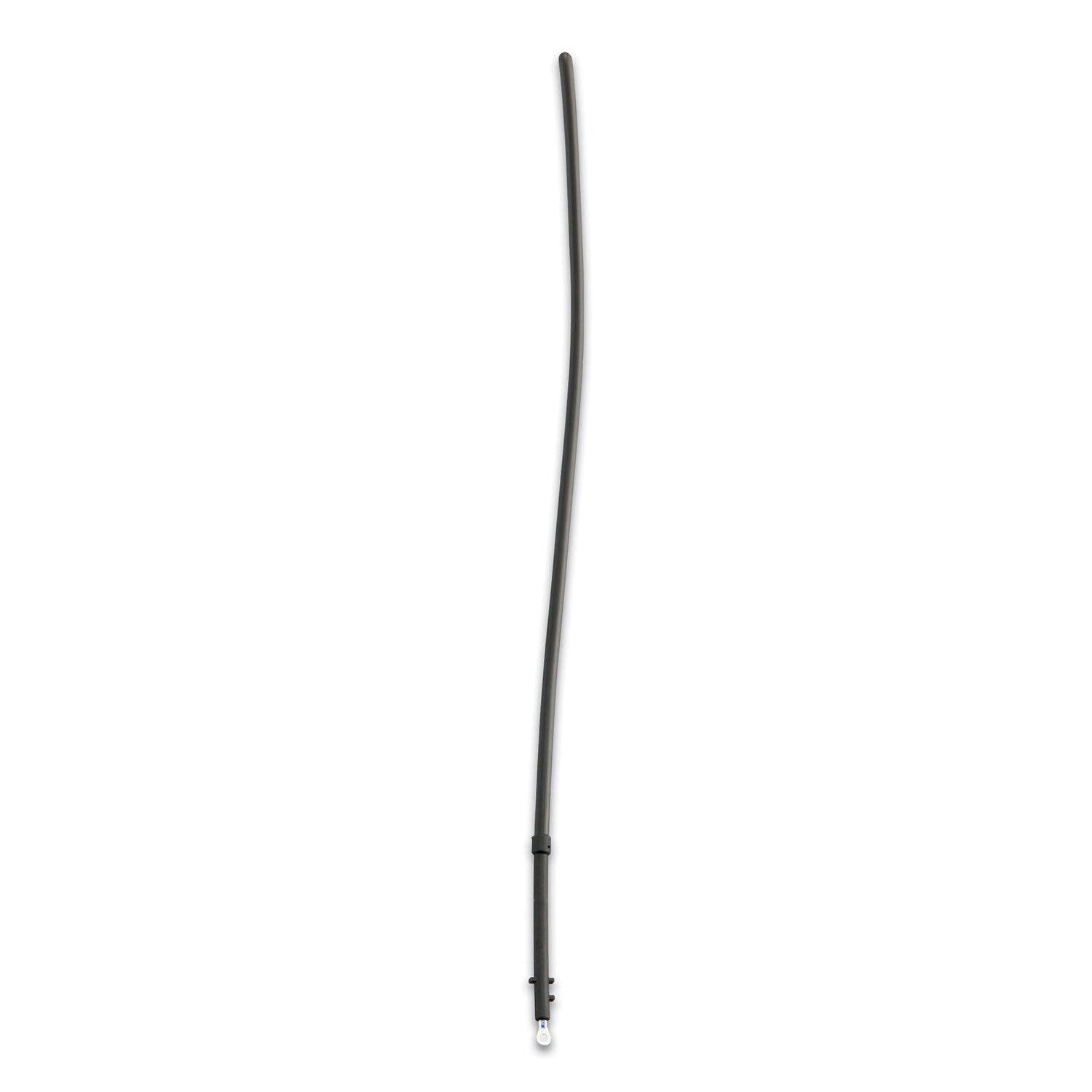

Garmin Replacement VHF Antenna Astro DC 40 Dog Tracking Collar

Garmin Replacement VHF Antenna Astro DC 40 Dog Tracking Collar

Use this VHF antenna with your DC 40 GPS dog-tracking collar for better tracking with your Astro.

Hardware includes one VHF whip antenna, two zip ties, rubber cap, and connector screw.

To Remove your old VHF antenna:

• Use a small Phillips screwdriver to remove the two mounting-plate screws and the mounting plate from the collar.
• Remove the collar strap.
• Remove the rubber cover from the VHF antenna-connector screw.
• Remove the VHF antenna-connector screw.

To attach your new VHF antenna to the collar:

• Attach the VHF antenna connector to the DC 40 with the VHF antenna-connector screw.
• Place the rubber cover over the VHF antenna-connector screw.
• Replace the collar strap.
• Connect the DC 40 to the collar using the mounting plate and the two mounting-plate screws.Garmin 010-10856-20 DC-40 Replacement VHF Antenna Dog Collar
